氧化石墨烯JCGO-100-1-3
|

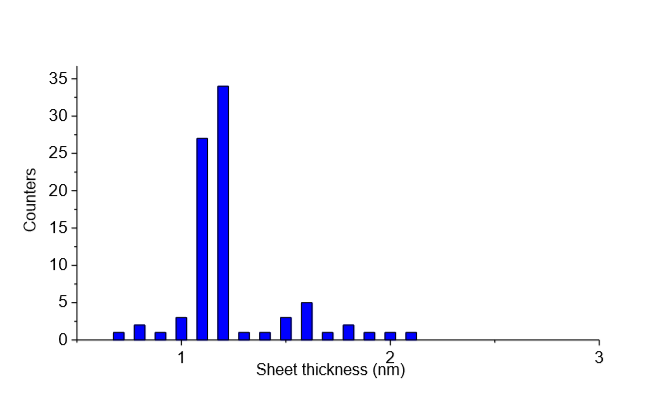

Thickness |
1nm |
|

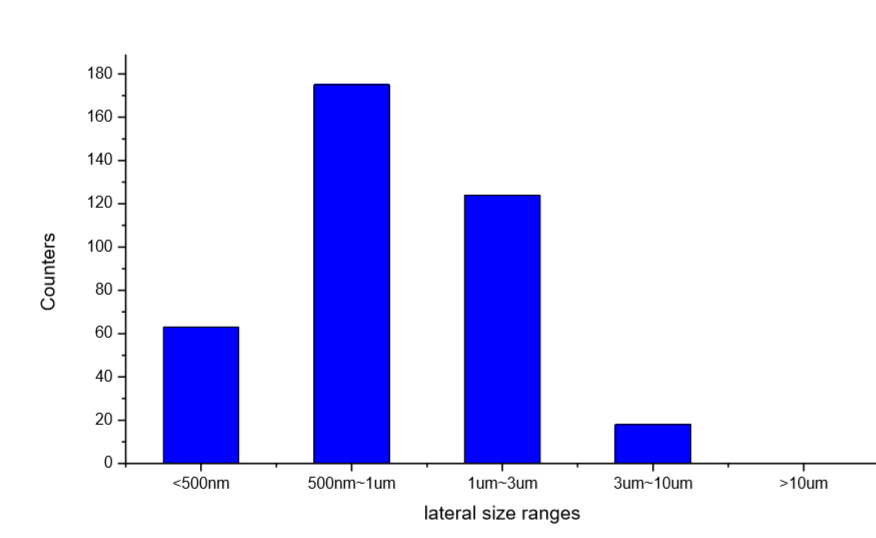

Layer Diameter |
0.5～3um |
|
Monolayer rate |
>91% |
|
C and O content |
100wt.% |
|
PH value（PH meter) |
3~4 |
XPS檢測結果：
|
Name |
Start BE |
Peak BE |
End BE |
Height CPS |
FWHM eV |
Area (P) CPS.eV |
Weight % |
Q |
Title |
|
C1s |
294.5 |
288.03 |
277 |
6569.79 |
4.19 |
28910.17 |
57.39 |
1 |
Survey |
|
O1s |
542 |
534.14 |
527 |
11425.66 |
3.21 |
40919.68 |
42.61 |
1 |
Survey |
ICP、AES(等離子體耦合元素發射光譜法）檢測：
|
Element |
Si |
O |
P |
S |
Na |
Ca |
Mg |
Sr |
|
Content(PPM) |
217.2 |
168.5 |
33.6 |
45.5 |
85.5 |
16.6 |
18.1 |
15.8 |
|
|
|
Element |
Al |
Fe |
Mn |
Co |
Ni |
|
|
|
|
Content(PPM) |
5.8 |
1.78 |
1.67 |
1.15 |
0.88 |
|
|
|
熱分析法測定灰分：~0.15wt.%
.png)
價格：600元/克
